Section 2.1.1 - Setting/Removing Focus Presets And Offsets

Enabling Absolute Focus Presets and Relative Focus Offsets

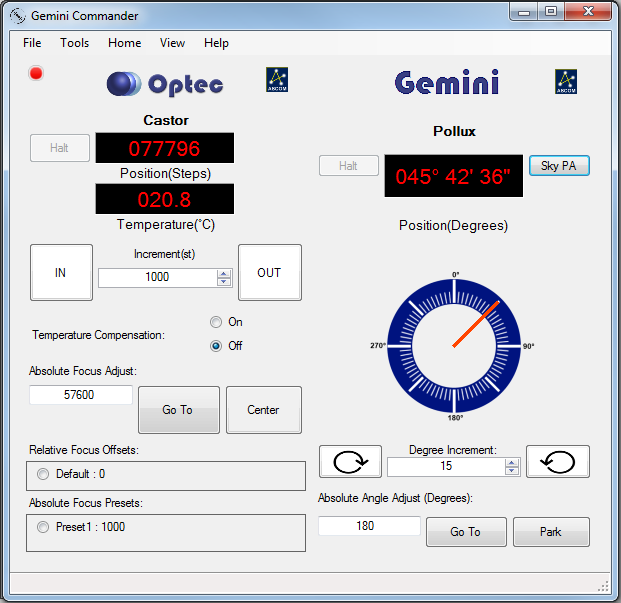

Gemini Commander provides the option to establish Relative Focus Offsets and Absolute Focus Presets to allow the user to have saved absolute positions and saved offset movements, typically used with filter offsets.  By default, neither Relative Focus Offsets nor Absolute Focus Presets are enabled.  To enable and work with Offsets/Presets you must enable the window panel under the View menu by clicking Relative Focus Offsets and/or Absolute Focus Presets.  A check-mark will appear next to the option and the window panel will be revealed.  Some re-sizing of the Gemini Commander main form may be required.

Description of Absolute Focus Presets

The purpose of the Absolute Focus Presets is to allow Absolute Focus Adjustments that are used frequently to be saved as a shortcut.  For example, if the user has a preferred Park position for the focuser a preset can be saved.  At the end of each evening's run, a simple click of the radio button next to the Absolute Focus Preset named PARK will drive the focuser to the stored position.

Description of Relative Focus Offsets

Unlike Absolute Focus Presets, Relative Focus Offset are not nearly as intuitive and can present seemingly confusing behavior.  Relative Focus Offsets were included at the request of several customers to allow filter focus offsets to be performed directly from Gemini Commander.   Most image acquisition software applications such as Maxim D/L, TheSky X, and many others provide similar functionality.  Review your acquisition software's description of "Filter Focus Offsets" for a detailed description of the process.  In short, due to chromatic aberrations in telescopes and refractive shifts due to different thickness filters, the best focus for each color filter may lie at different focal planes.  A focuser can easily compensate for this filter focal shift if the step position changes have been characterized and defined in advance.  However, duplication of filter focus offsets between software packages is not recommended.  Choose one software package to perform the offsets and stick with it exclusively.

That being said, here is a description of the Relative Focus Offsets feature provided in Gemini Commander as applied to Filter Focus Offsets.  The screen shot below shows an example of preconfigured Relative Focus Offsets for the TCF-Lynx focusers and an arbitrary optical system.  Assume the CLEAR filter focus position is our baseline and has an Offset of 0 steps.  The RED filter has an Offset of +150 steps from Clear.  The GREEN filter has an Offset of +25 steps from Clear, and the BLUE filter has an Offset of -75 steps from Clear.  All moves are relative to the CLEAR focus position.

Assume we start at Position 3500 and click the RED offset.  The focuser moves to 3500 plus 150 or 3650, as shown.  Clicking the GREEN offset will move to 3525 (3500 plus 25) and clicking the BLUE offset will move to 3425 (3500 minus 75).  These moves are relative to our original starting point and NOT the current position.  This procedure is straight-forward until we introduce additional moves.

If we make a Relative move from any of these positions of, say 250 steps, then the new baseline will be 3500 plus 250, or 3750 steps.  All offsets will now be based upon this new baseline - the CLEAR filter in our example below.  In this example, clicking the CLEAR offset will move immediately to 3750, the RED offset will move to 3750 plus 150, or 3900.  Similarly, clicking the GREEN offset will move to 3750 plus 25, or 3775, and clicking the BLUE offset will move to 3750 minus 75, or 3675.

Turning on Temperature Compensation at this point will move the focuser in accordance with the TC, or temperature coefficient, and all moves will be with respect to the baseline, or CLEAR filter position in our example.  Again, this can be confusing to watch and understand but if you think about it in terms of the baseline position it will make sense.  Contact Optec Technical Support for clarification or additional explanation.

Setting Offsets

The purpose of the focus offset is to accommodate customers who are using the Gemini in conjunction with one or more filter wheels. When changing from one filter to another, a focus change is often required because the optical system does not always focus all wavelengths at the same focal plane.  A small offset can be entered for each filter used.

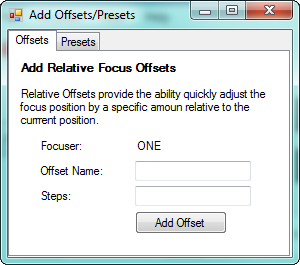

• Open The Add Offsets/Presets Window - On the Gemini Commander main window, right-click anywhere within the Relative Focus Offsets list at the bottom of the window. Select the Add Offset(s) option. You may add as many offsets as you like from the same window.

• Add A Name - Give the offset a name by filling in the Offset Name text box.

• Add A Step Number - Specify the number of steps associated with the offset by filling in the Steps text box.  For Offsets a positive Steps: value will move the focuser Out while a negative Steps: value will move the focuser In.

• Save Your Offset - Click the Add Offset button to add your offset. The offset should appear in the Relative Focus Offsets list on the Commander main window.

Setting Presets

The purpose of these presets is to provide the user the ability to quickly change focus to a specific stored position. For example, if you know that your optical system focuses somewhere near 1000 steps, you may want to create an absolute focus preset at 1000. With such a preset, you may be able to shorten the time of a focusing routine by quickly moving close to your focus point before beginning the routine.

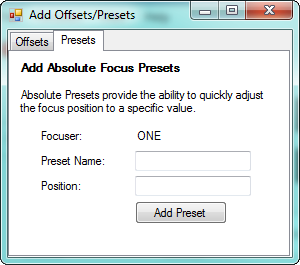

• Open The Add Offsets/Presets Window - On the Gemini Commander main window, right-click anywhere within the Absolute Focus Presets list at the bottom of the window. Select the Add Preset(s) option.  You may add as many presets as you like from this window.

• Add A Name - Give the preset a name by filling in the Preset Name text box.

• Add A Step Number - Specify the absolute position associated with the preset by filling in the Position text box.

• Save Your Preset - Click the Add Preset button to add your preset. The preset should appear in the Absolute Focus Presets list on the Commander main window.

Removing Offsets

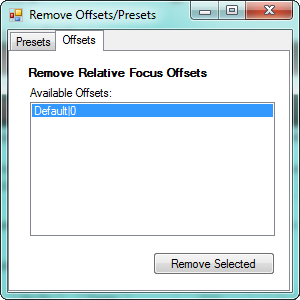

• Open The Remove Offsets/Presets Window - On the Gemini Commander main window, right-click anywhere within the Relative Focus Offsets list at the bottom of the window. Select the Remove Offset(s) option.

• Select The Offsets - Select the offset you wish to remove by clicking on it in the Available Offsets list. Use Ctrl+Click to select multiple offsets from the list.

• Remove The Offsets - Remove the selected offsets by clicking the Remove Selected button.

Removing Presets

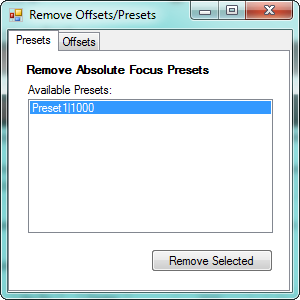

• Open The Remove Offsets/Presets Window - On the Gemini Commander main window, right-click anywhere within the Absolute Focus Presets list at the bottom of the window. Select the Remove Preset(s) option.

• Select The Presets - Select the preset you wish to remove by clicking on it in the Available Presets list. Use Ctrl+Click to select multiple presets from the list.

• Remove The Presets - Remove the selected presets by clicking the Remove Selected button.
